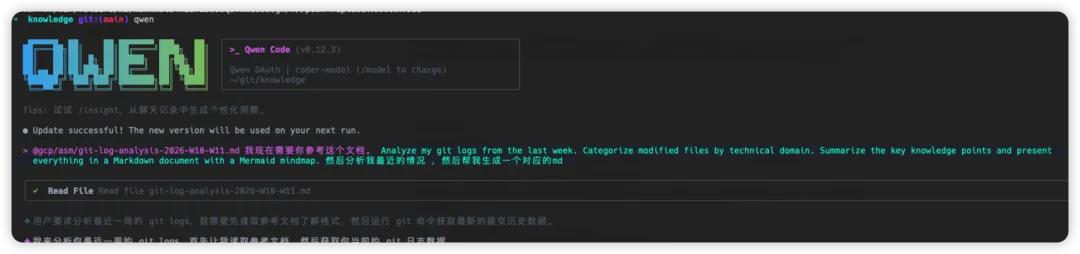

因为很多时间都是陪着 AI 聊天了,知识点和片段也会模糊的快,所以总结其实很有必要。只有总结的精准才能提高会话效率,减少 Token 浪费。精准提取核心关键字。Analyze my git logs from the last week. Categorize modified files by technical domain. Summarize the key knowledge points and present everything in a Markdown document with a Mermaid mindmap. 然后分析我最近的情况 ,然后帮我生成一个对应的md
- `PSC` 解决的是私网连通,不解决证书域名匹配。- `Private DNS / Response Policy` 解决的是“域名解析到 PSC IP”。- `SAN` 解决的是“这个域名是否被证书合法覆盖”。- 所以真正可用的 HTTPS 方案不是单点能力,而是: `PSC + Private DNS/Response Policy + SAN覆盖的证书 + 正确SNI/Host`- 在 PSC 场景里,客户端应该尽量始终访问 `FQDN`,不要直接访问 `PSC IP`。- `SAN` 是证书层能力,不是 DNS 替代品,也不是路由替代品。- 百度证书案例说明了一个关键现实: 现代 TLS 主机名校验主要看 `SAN`,不是看 `CN`。- 大量 SAN 往往意味着“共享 TLS 入口”或“共享网关”,不一定是异常。- `Wildcard` 不是万能的,它只适合命名规则稳定的场景。

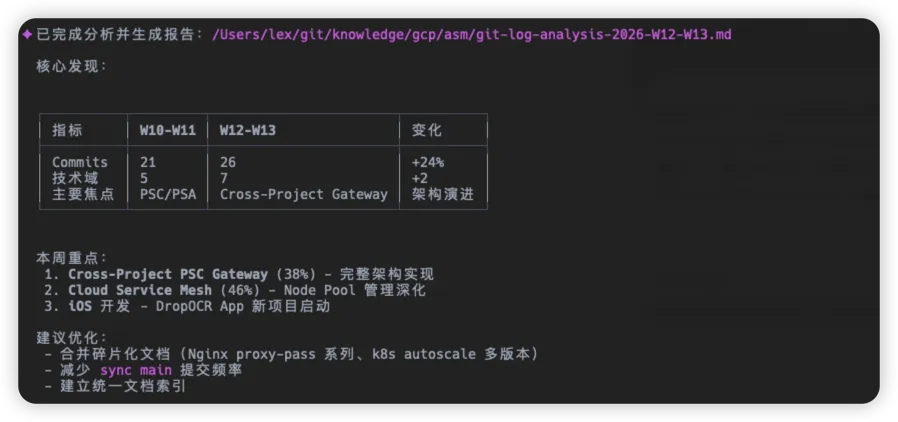

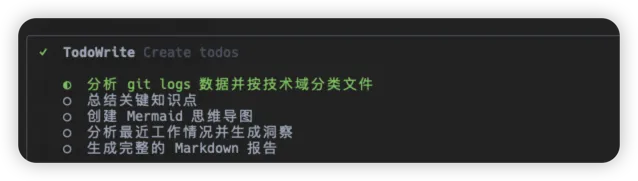

效果如下 看起来它也会学习原来的模板 然后优化结果下面是部分内容
Git Log Analysis Report (2026-W12 ~ W13)
Report Generated: 2026-03-21Time Range: 2026-03-14 ~ 2026-03-21Total Commits: 26 (non-merge)
Executive Summary
| |
|---|
| Total Commits | |
| Active Days | |
| Files Modified | |
| Technical Domains | |
| Primary Focus | Cross-Project PSC Gateway & GKE Node Pool Management |
Technical Domain Categorization
| |
|---|
rt-psc-gateway.md | PSC Gateway implementation guide |
Rt-psc-connect-master-project-gateway.md | Master project gateway connection |
cross-project-san.md | Service Attachment Name (SAN) configuration |
rt-cross-project-fqdn.md | Cross-project FQDN resolution |
about-wildcard-depth.md | Wildcard certificate depth analysis |
explorer-2-0-fqdn.md | |
Master ProjectTenant ProjectClientGLBPSC NEGService AttachmentInternal LBGKE GatewayService MeshBackend Services
2. Cloud Service Mesh (ASM/CSM) 📊
Files Modified:12+ files ingcp/asm/cloud-service-mesh-control.md
- CSM control plane setupcloud-service-mesh-control-gpt.md
- GPT-assisted CSM configurationcloud-service-mesh-eng.md
node-pool-management.md
- GKE node pool management strategiesnode-pool-manage-claude.md
- Claude-assisted node pool managementNode Pool Management Key Points:
4. Nginx Configuration 🔧
Files Modified:8+ files innginx/4.1 Proxy Pass Configuration
| |
|---|
nginx-proxy-pass.md | Basic proxy pass configuration |
proxy-pass/Nginx-proxy-pass.md | Comprehensive proxy pass guide |
proxy-pass/nginx-proxy-pass-rewrite.md | URL rewrite with proxy pass |
proxy-pass/nginx-proxy-pass-usersgent.md | |
proxy-pass/nginx-proxy-forwarded-proto.md | X-Forwarded-Proto handling |
4.2 Transfer Encoding
nginx-Transfer-Encoding.md
- Transfer-Encoding handling in Nginxlocation/api/{proxy_passhttp://backend;proxy_set_headerHost$host;proxy_set_headerX-Real-IP$remote_addr;proxy_set_headerX-Forwarded-For$proxy_add_x_forwarded_for;proxy_set_headerX-Forwarded-Proto$scheme;}
5. SSL/TLS & DNS 🔒
Files Modified:8+ files inssl/anddns/debug-ssl.md
debug-ssl-chatgpt.md
- ChatGPT-assisted SSL debuggingopenssl.md
- OpenSSL commands and usagegskit.md
verify-domain-ssl.sh
- Domain SSL verification scriptverify-domain-ssl-enhance.sh
- Enhanced verification scriptwhy-san.md
- Subject Alternative Name (SAN) explanationSSL Verification Pipeline:Basic SSL Checkopenssl s_client-connectexample.com:443-servernameexample.com# Certificate Detailsopenssl x509-incert.pem-text-noout# Verify Chainopenssl verify-CAfileca.pem cert.pem
6. iOS Development 📱
Files Modified:6+ files inios/6.1 DropOCR App
DropOCR.swift
- Main OCR application logicDropOCR.app/
Reade.md
- Reader/OCR documentationnas-ocr.md
6.2 Mini Game
snake.html
- Snake game implementation
7. GLB (Global Load Balancer) 🌐
Files Modified:3+ files ingcp/glb/glb.md
- GLB configuration guideglb+psc.md
- GLB + PSC integration patternInternet → GLB → PSC NEG → Service Attachment → ILB → Backend
Cross-Project MeshOCR AppGameCSM ControlNode Pool MgmtAutoscalingkubectl ToolsProxy PassDebug & VerifyScriptsGateway CoreTransfer EncodingFQDN/SANArchitecture DiagCross-Project GatewayASM/CSMKubernetesNginxSSL/TLSiOSCommit Activity (2026-03-14 to 2026-03-21)

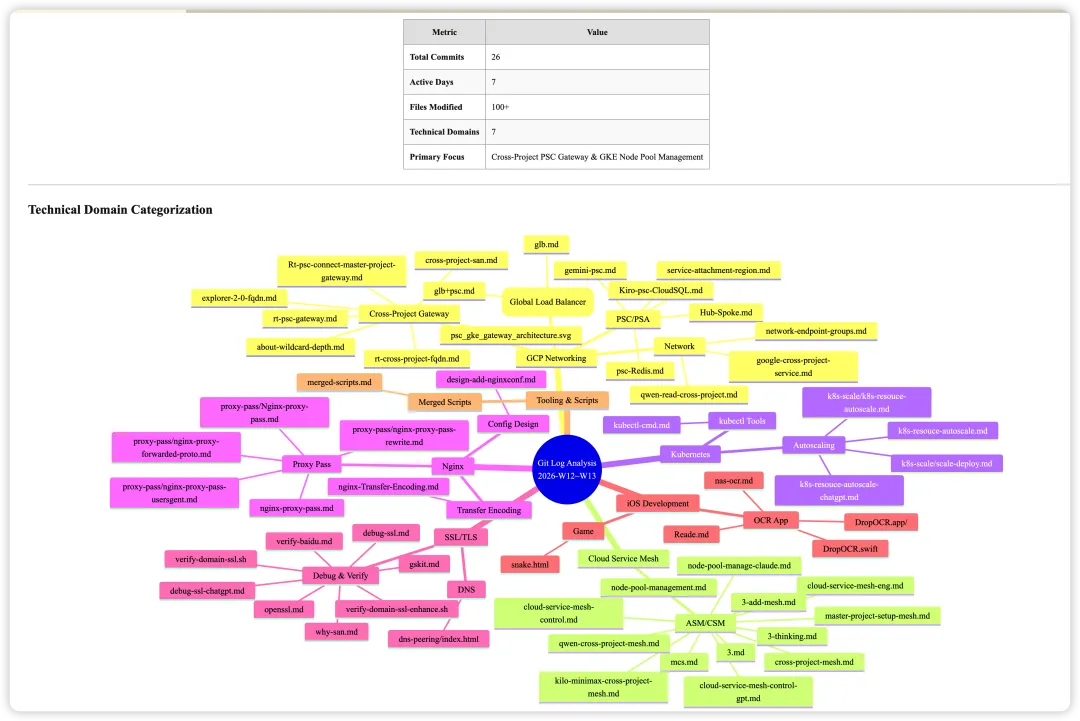

Knowledge Graph
iOS DevDropOCR.swiftsnake.htmlSSL/TLSdebug-ssl.mdverify-domain-ssl.shNginxnginx-proxy-pass.mdnginx-Transfer-Encoding.mdKubernetesk8s-resouce-autoscale.mdkubectl-cmd.mdCloud Service Meshcloud-service-mesh-control.mdnode-pool-management.mdcross-project-mesh.mdCross-Project Gatewayrt-psc-gateway.mdcross-project-san.mdrt-cross-project-fqdn.mdpsc_gke_gateway_architecture.svg
最近工作情况分析
工作模式观察 📈
1. 高频同步提交
本周 26 个 commit 中,约 23 个为chore: sync main同步提交2. 技术域集中度
3. 工作时间分布
: 周一 - 高强度工作 (7 commits) - Nginx/K8s/CSM 多线并行: 周三 - SSL/TLS 专项 (6 files): 周四 - 周五 - Cross-Project Gateway 集中突破技术深度分析 🔍
✅GCP 跨项目架构- PSC + GLB + Mesh 完整链路✅Service Mesh- CSM 控制平面 + 数据平面 + Node Pool 管理✅Nginx 配置- Proxy Pass/Transfer-Encoding/Headers 处理✅SSL/TLS- Debug/Verify/OpenSSL/GSKit 全工具链🆕iOS 开发- DropOCR App + 小游戏🆕K8s Autoscaling- HPA/VPA/Cluster Autoscaler潜在问题 ⚠️
1. 文档碎片化
多个相似文件:k8s-resouce-autoscale.mdvsk8s-resouce-autoscale-chatgpt.md多个 Nginx proxy-pass 文档分散在不同目录2. 脚本合并趋势
merged-scripts.md
建议:将脚本移至独立scripts/目录并版本化管理3. 架构复杂度
Cross-Project + PSC + Mesh + Gateway 多层叠加
Actionable Insights
What Went Well ✅
- 完整的 PSC + GKE Gateway 架构文档化- 同时使用 Claude、GPT、Kiro、Gemini 辅助开发Areas for Improvement 📈
- 合并相似的 AI 辅助文档(chatgpt/claude/gpt 版本)- 将psc_gke_gateway_architecture.svg纳入正式文档Recommended Next Steps 🎯
短期 (1-2 周):
🔧 合并 Nginx proxy-pass 系列文档为单一权威指南📊 绘制完整的 Cross-Project Gateway 端到端架构图🧪 为 SSL verification scripts 添加单元测试中期 (1 个月):
🏗️ 建立scripts/目录,整合所有验证/部署脚本📖 编写 Cross-Project Gateway 完整实施手册🔒 完善 mTLS 和 AuthorizationPolicy 配置文档📱 DropOCR App 功能完善和 App Store 发布准备长期 (季度):
File Statistics by Domain
周对比分析 (W10-W11 vs W12-W13)
- 从 PSC 基础概念 → Cross-Project Gateway 实现- CSM 从基础配置 → Node Pool 管理- SSL verification scripts 增强版
Conclusion
Primary Achievement:完成了Cross-Project PSC Gateway从设计到实现的完整文档化,包括架构设计、FQDN 解析、SAN 配置、Gateway 连接等全链路细节。GCP Networking: PSC/PSA/GLB/NEG 深度整合Service Mesh: CSM 控制平面 + 数据平面 + Node Pool 管理Nginx: Proxy Pass/Transfer-Encoding/Headers 完整配置SSL/TLS: Debug/Verify/OpenShell/GSKit 工具链Documentation Quality:高 - 多层文档从概念 → 实现 → 调试,但存在碎片化问题需要整合。Work Pattern:高频同步提交表明多分支/环境并行开发,建议优化同步策略减少提交噪音。
Report generated by analyzing git commit history from 2026-03-14 to 2026-03-21
